PEX compression fittings are a popular choice in modern plumbing systems for their durability, ease of installation, and ability to create secure, leak-free connections. Whether you’re working with PEX piping in a residential or commercial setting, understanding why PEX compression fittings are leak-proof is essential for ensuring the longevity and efficiency of your plumbing system. In this article, we will explore the key features and mechanisms that make PEX compression fittings reliable and leak-resistant, as well as address common questions about their use and benefits.

 What Are PEX Compression Fittings?

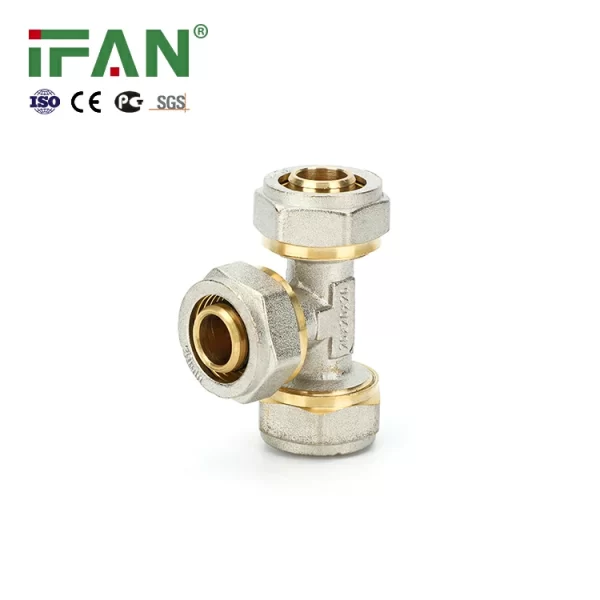

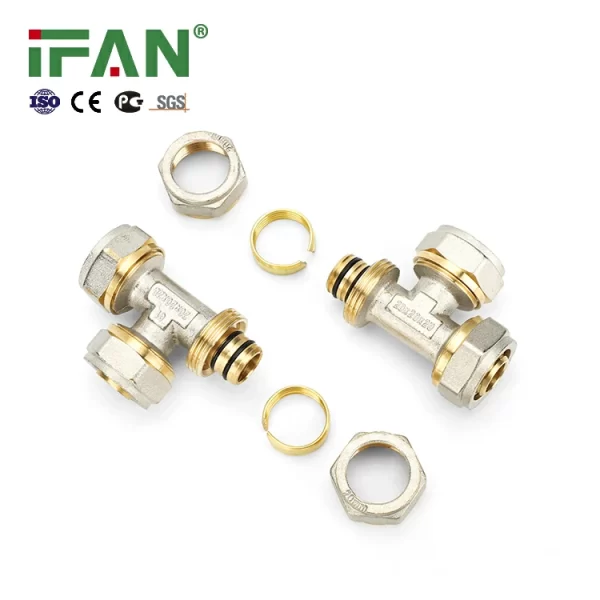

PEX compression fittings are specialized plumbing connectors designed to join PEX pipes (cross-linked polyethylene) to each other or to other plumbing systems. These fittings consist of a compression nut, compression ring (also called a ferrule), and a fitting body. The assembly works by tightening the compression nut onto the fitting, which pushes the compression ring firmly onto the PEX pipe, creating a secure and tight seal. This connection is designed to be durable, resistant to leaks, and flexible enough to handle the expansion and contraction of PEX pipes.

How Do PEX Compression Fittings Work?

The main function of PEX compression fittings is to form a strong, leak-resistant connection between PEX pipes and plumbing components. The compression nut, when tightened, forces the compression ring onto the PEX pipe, creating a tight grip that prevents water from leaking through. The compression ring is designed to deform slightly when pressure is applied, ensuring the pipe and fitting are tightly sealed. This process does not require soldering or heat, which makes installation quick and straightforward, even for DIY enthusiasts.

Now, let’s explore the specific features of PEX compression fittings that make them leak-proof.

1. Tight Compression Seal

The most important factor in the leak-proof nature of PEX compression fittings is the compression seal they create. When the compression nut is tightened onto the fitting body, the compression ring squeezes the PEX pipe tightly, forming an airtight seal that prevents water from escaping. This tight compression connection is one of the primary reasons why **PEX compression fittings are highly reliable in preventing leaks.

The PEX pipe itself is flexible and resilient, which allows it to adapt to the compression pressure without cracking or breaking. This ability to create a consistent seal between the pipe and fitting ensures that water cannot leak through, even under varying water pressures.

2. Material Durability and Resistance

PEX compression fittings are typically made from durable materials such as brass, stainless steel, or plastic. These materials are resistant to corrosion, wear, and tear, ensuring the fitting maintains its integrity over time. Unlike metal fittings, which can corrode and degrade due to prolonged exposure to water, PEX compression fittings maintain their strength and sealing ability for many years.

Brass, for example, is highly resistant to corrosion, making it ideal for use in systems where water quality may vary. Stainless steel offers even greater resistance to rust and can withstand harsher environmental conditions. This durability prevents the fittings from becoming loose or degraded, which could otherwise result in leaks.

3. No Need for Heat or Special Tools

One of the key advantages of PEX compression fittings is that they do not require heat, soldering, or welding for installation. Unlike traditional copper or PVC fittings, which require specific tools and techniques to join pipes, PEX compression fittings only need to be tightened using a standard wrench. This simple installation process not only makes the system easier to assemble but also reduces the likelihood of mistakes that could lead to leaks. Since there’s no risk of over-tightening, which can damage the pipes, the PEX compression fitting form a secure, leak-proof bond without the risk of damaging the system during installation.

4. Resilience to Temperature Changes

PEX pipes are known for their flexibility and ability to expand and contract with temperature changes. This flexibility allows the pipes to absorb thermal fluctuations and adapt to different environmental conditions. In combination with PEX compression fittings, this characteristic helps prevent leaks that might otherwise form in systems with rigid piping materials, such as copper or PVC.

Temperature fluctuations can cause pipes to expand and contract, putting pressure on joints and connections. PEX compression fittings are designed to accommodate these movements, ensuring the seal remains tight and leak-free. This resilience makes PEX compression fittings a reliable solution for areas with fluctuating temperatures, such as attics, basements, or regions with extreme seasonal changes.

5. Tight Tolerances and Quality Control

Another reason why PEX compression fittings are leak-proof is their precision engineering. These fittings are manufactured to strict tolerances, ensuring that the compression nut, compression ring, and fitting body all align perfectly. This attention to detail ensures a tight, consistent seal every time the fitting is installed. High-quality control standards during manufacturing further ensure that each fitting performs reliably and prevents leaks under normal operating conditions.

6. Flexibility of PEX Pipes

PEX pipes themselves are highly flexible and resistant to kinks or fractures. When combined with PEX compression fittings, this flexibility makes the entire system more adaptable to movement and pressure changes. For example, if a pipe bends or shifts slightly due to thermal expansion or physical movement, the flexibility of the PEX pipe will prevent stress on the fitting, ensuring that the compression seal remains intact.

The PEX pipe’s ability to flex without cracking or breaking also prevents issues like leaks at connection points. Rigid pipes, such as copper or PVC, are more prone to stress fractures when subjected to temperature changes or physical pressure. PEX, however, moves with the system, which reduces the risk of connection failure and leaks.

7. Long-Lasting Performance

Due to their corrosion resistance and durable design, PEX compression fittings provide long-lasting, leak-free performance. While other plumbing systems may need frequent maintenance or replacement due to wear and tear, PEX compression fittings require minimal upkeep. The materials used in PEX compression fittings are resistant to rust, scale buildup, and chemical reactions, which helps maintain their integrity and seal over time.

With proper installation, PEX compression fittings can last for decades, providing a reliable, leak-free connection throughout the life of your plumbing system.

Frequently Asked Questions (FAQ)

1. How do I install PEX compression fittings?
Installing PEX compression fittings is straightforward. Simply slide the compression ring onto the PEX pipe, insert the pipe into the fitting body, and tighten the compression nut using a wrench. No special tools or heat are required for installation.

2. Can PEX compression fittings be reused?
PEX compression fittings can often be reused if they are not damaged. However, the compression ring should be inspected for wear, and if it shows signs of degradation, it should be replaced to ensure a secure seal.

3. Are PEX compression fittings suitable for both hot and cold water systems?
Yes, PEX compression fittings are suitable for both hot and cold water systems. They can withstand a wide range of temperatures without compromising their ability to create a leak-proof seal.

4. How long do PEX compression fittings last?
With proper installation and maintenance, PEX compression fittings can last for 50 years or more. They are durable and resistant to corrosion, making them a long-term solution for plumbing systems.

5. Can PEX compression fittings be used with other types of piping materials?
PEX compression fittings are specifically designed for use with PEX pipe but can also be used to connect PEX pipes to other types of plumbing materials, such as copper, PVC, or brass, using appropriate adapters.

Conclusion

PEX compression fittings are an essential component in creating a leak-proof plumbing system. Their design, which combines a tight compression seal, durable materials, and flexibility, ensures reliable, long-lasting connections that resist leaks. Whether you’re installing a new system or replacing older pipes, PEX compression fittings offer a simple, efficient, and cost-effective solution for preventing leaks and ensuring the integrity of your plumbing system.
