In modern plumbing systems, PEX (cross-linked polyethylene) piping has become a popular choice due to its flexibility, ease of installation, and resistance to corrosion. As the demand for PEX systems grows, plumbing professionals and DIY enthusiasts alike are looking for reliable, efficient ways to connect PEX pipes to various components. Among the numerous connection methods available, PEX compression fittings offer an effective solution for creating secure, leak-free connections. In this article, we will explore how to connect PEX compression fittings with a focus on the benefits of PEX press fittings and the role they play in creating long-lasting, reliable plumbing systems.
What Are PEX Compression Fittings?

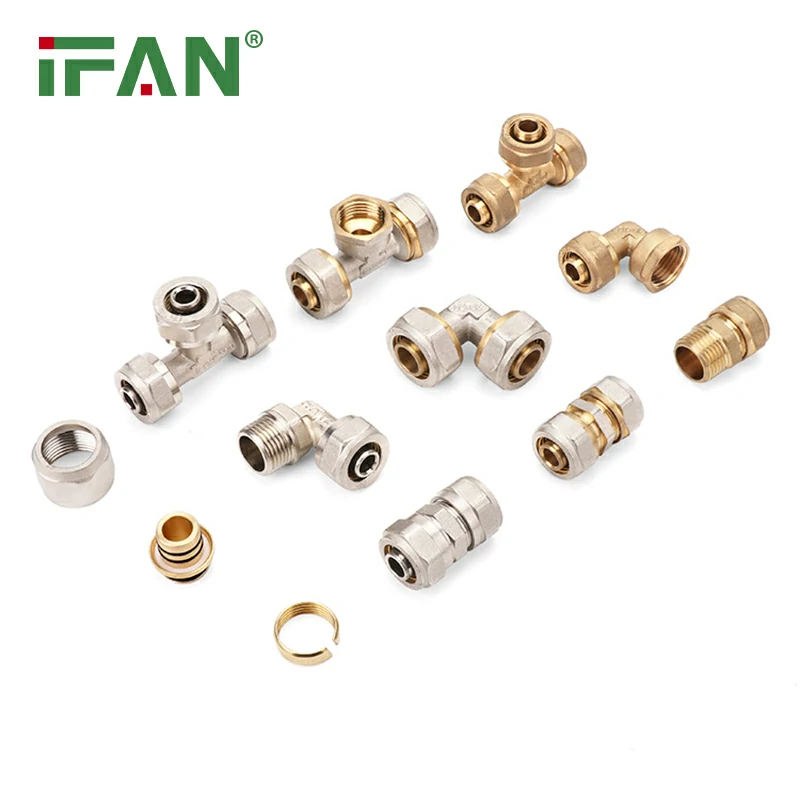

PEX compression fittings are one of the most common methods used to connect PEX pipes to other plumbing components, such as faucets, valves, and fixtures. These fittings use a compression ring (also known as a ferrule) and a nut to create a tight, secure seal around the PEX pipe. When the nut is tightened, it compresses the ferrule, which in turn compresses the PEX pipe against the fitting, forming a leak-free connection. This type of connection is highly effective and commonly used for water supply lines, heating systems, and plumbing applications.
However, while PEX compression fittings are an effective solution, they are just one of the many types of PEX fittings available. PEX press fittings—which use a mechanical pressing tool instead of a compression nut—have gained popularity for their ease of use, speed, and reliability.
How PEX Compression Fittings Work
To understand how PEX compression fittings work, it’s important to break down the components and the installation process:
- Compression Nut: The nut is a threaded piece that screws over the PEX pipe and onto the fitting, providing the force needed to compress the ferrule.
- Ferrule (Compression Ring): The ferrule is a small, usually brass or stainless steel ring that sits between the PEX pipe and the fitting. The ferrule helps create the seal by compressing against the PEX pipe when the compression nut is tightened.
- Fitting Body: The fitting body is the component that connects the PEX pipe to the plumbing system. Depending on the type of fitting, it may have a threaded or push-fit end that connects to the other components in the system.
- Sealing Mechanism: When the compression nut is tightened, it compresses the ferrule around the PEX pipe, ensuring a secure seal that prevents leaks.
The process of connecting a PEX compression fitting is relatively simple, requiring just the PEX pipe, the appropriate fitting, and a wrench to tighten the nut. Once the connection is made, the PEX pipe is securely sealed against the fitting, providing a durable, leak-free connection for your plumbing system.
What Are PEX Press Fittings and How Do They Compare to Compression Fittings?
While PEX compression fittings are a widely used connection method, PEX press fittings offer an alternative that is becoming increasingly popular in the plumbing industry. PEX press fittings utilize a press tool to create a secure, leak-free connection between the PEX pipe and the fitting without the need for a compression ring or nut. This press-fit technology eliminates the need for threaded connections or manual tightening, making the installation process faster and more reliable.
Key Differences Between PEX Compression Fittings and PEX Press Fittings
| Feature | PEX Compression Fittings | PEX Press Fittings |
|---|---|---|
| Installation Method | Manual tightening of compression nut | Use of a mechanical press tool to compress the fitting onto the pipe |
| Components | Nut, ferrule (compression ring), fitting body | Fitting body and a press fitting tool |
| Ease of Installation | Requires manual effort and wrenches | Faster and easier with no need for tightening by hand |
| Connection Type | Compression around the PEX pipe | Press-fit connection between the fitting and PEX pipe |
| Leak Prevention | Reliable but requires correct tightening | Extremely reliable with consistent, leak-free connections |
| Time to Install | Longer due to manual tightening | Shorter due to the press tool |
Why Use PEX Press Fittings Over Compression Fittings?
While PEX compression fittings are effective, PEX press fittings offer several advantages that make them a superior choice in many situations. Here’s why many plumbing professionals prefer PEX press fittings:
- Faster Installation
With PEX press fittings, you no longer need to manually tighten nuts or adjust ferrules. The press tool does the work, creating a secure connection in just a few seconds. This speed can significantly reduce installation time, making it a time-efficient choice for both professionals and DIYers. - Increased Reliability
Tightening a PEX compression fitting by hand can sometimes result in inconsistent connections, leading to leaks. In contrast, the PEX press fitting system ensures a consistent and reliable connection every time, minimizing the risk of leaks and improving the overall reliability of your plumbing system. - No Need for Special Tools for Tightening
While PEX compression fittings require a wrench to tighten the compression nut, PEX press fittings only require a press tool, which simplifies the installation process and eliminates the need for manual tightening. - Better for High-Pressure Systems
PEX press fittings provide stronger connections that are better suited for high-pressure systems. Whether you’re working with residential water supply lines or commercial heating systems, PEX press fittings offer a more robust solution than compression fittings, which may struggle under high pressure. - No Risk of Over-tightening
With PEX compression fittings, there’s always a risk of over-tightening the nut, which can damage the fitting or pipe, leading to potential failure. PEX press fittings eliminate this risk by creating a perfectly pressed connection with the press tool, ensuring uniformity and avoiding damage from over-tightening.
Benefits of PEX Compression Fittings
Despite the growing popularity of PEX press fittings, PEX compression fittings still offer unique benefits that make them ideal for specific applications:
- Simple Installation
For many, PEX compression fittings are a straightforward and simple option. There’s no need for specialized tools or training; all you need is a wrench to tighten the compression nut, making them suitable for DIY installations. - Cost-Effective
PEX compression fittings are generally less expensive than PEX press fittings. For smaller projects or systems where the risk of leaks is minimal, PEX compression fittings can be a more budget-friendly option. - Widely Available
PEX compression fittings are widely available at hardware stores and online retailers, making them a convenient option for homeowners and plumbers who need to quickly complete a project. - Versatility
Compression fittings are available in a variety of materials and configurations, making them suitable for a range of applications, from water lines to radiant heating systems.
When Should You Use PEX Compression Fittings?
PEX compression fittings are ideal in the following scenarios:
- DIY Projects: If you’re a DIY enthusiast, PEX compression fittings are easy to work with and do not require specialized tools.
- Small Installations: For small, low-pressure plumbing systems, PEX compression fittings provide a cost-effective and reliable solution.
- Quick Fixes: If you’re looking to quickly fix a plumbing issue without investing in specialized tools, PEX compression fittings are a great option.
How to Install PEX Compression Fittings
Here’s a step-by-step guide on how to install PEX compression fittings:
- Cut the PEX Pipe: Use a PEX pipe cutter to ensure a clean, straight cut at the desired length.
- Slide the Compression Nut: Slide the compression nut onto the pipe first, followed by the compression ferrule.
- Insert the Fitting: Insert the PEX pipe into the compression fitting.
- Tighten the Nut: Use a wrench to tighten the compression nut onto the fitting, ensuring that the ferrule compresses the pipe and creates a secure seal.
- Check for Leaks: Once the fitting is in place, turn on the water supply and check for any leaks. If there are any, tighten the nut further until the leak stops.
Conclusion
Both PEX compression fittings and PEX press fittings are excellent solutions for connecting PEX pipes in plumbing systems. While PEX compression fittings offer a cost-effective, simple, and reliable connection method, PEX press fittings provide quicker installation, increased reliability, and enhanced durability, particularly for high-pressure applications. By understanding the differences between the two types of fittings, you can choose the best solution for your plumbing needs.
As the plumbing industry continues to innovate, the adoption of PEX press fittings is on the rise, with professionals and homeowners alike appreciating the speed, efficiency, and strength of the press-fit technology. Whether you choose PEX compression fittings or PEX press fittings, both offer secure, long-lasting solutions for your plumbing system.
Frequently Asked Questions (FAQs)
1. What are PEX compression fittings?
PEX compression fittings are connectors that use a compression nut and ferrule to secure PEX pipe to a fitting, creating a tight, leak-free seal.
2. How do PEX compression fittings work?
When the compression nut is tightened, it compresses the ferrule around the PEX pipe,
creating a secure and leak-free connection with the fitting.
3. What is the difference between PEX compression fittings and PEX press fittings?
PEX compression fittings require manual tightening of a compression nut and ferrule, while PEX press fittings use a press tool to create a mechanical, leak-free connection without tightening by hand.
4. Are PEX press fittings better than compression fittings?
PEX press fittings are generally faster, more reliable, and better suited for high-pressure systems compared to PEX compression fittings, which require manual effort and are more prone to inconsistencies.
5. Can I use PEX compression fittings for all plumbing applications?
While PEX compression fittings are suitable for many applications, they are best for low-pressure systems or DIY projects. For high-pressure or commercial systems, PEX press fittings may be a more reliable choice.
